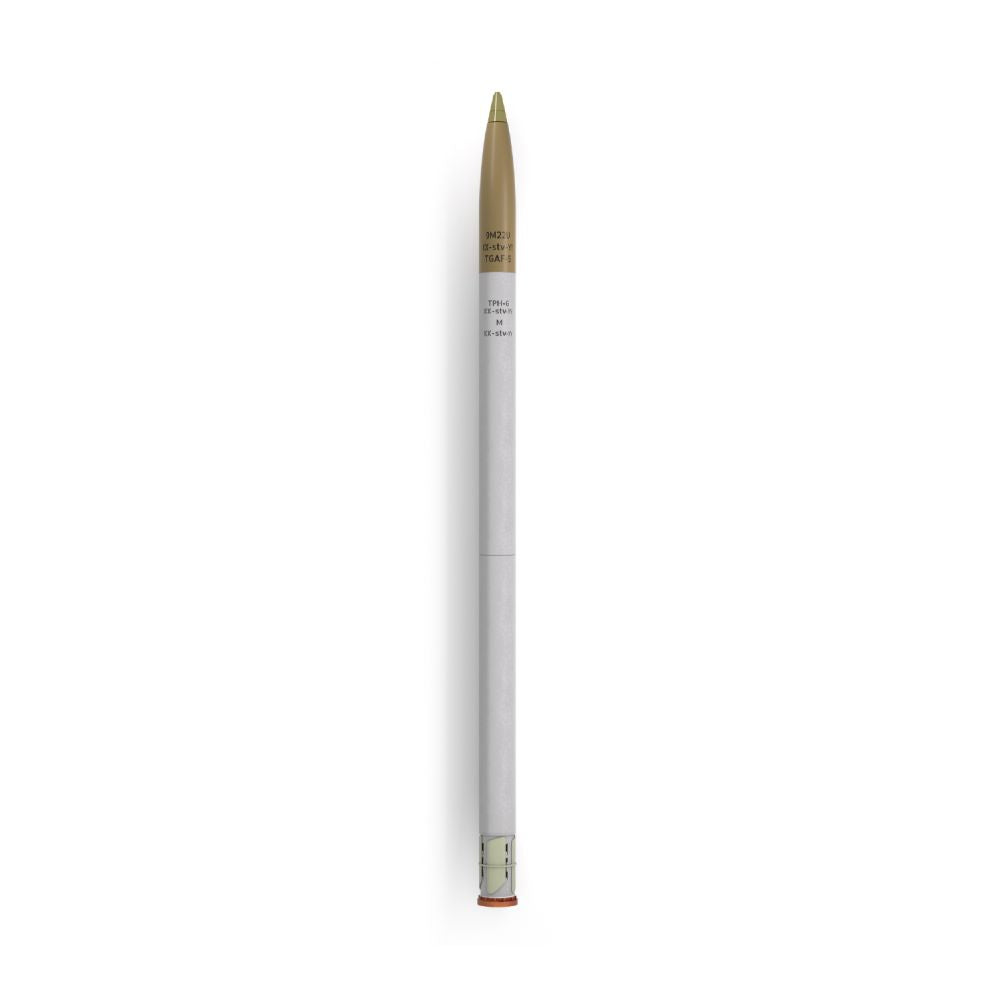

Rocket 122 mm „GRAD“
Rocket 122 mm „GRAD“
Unguided rocket 122mm for RM-70 and B-21 multiple launch rocket systems
The artillery rocket intended for fire support against fortified, light armored or non-armored targets. It is designed to incapacitate enemy troops and to neutralize enemy command posts and communication centres.
NSN: 1315-16-004-8909
Basic technical parameters:
|
Caliber, mm |
122 |
|
Length, mm |
2875 |
|
Total weight, kg |
67 |
|
Weight of warhead with fuze, kg |
19,1 |
|
Propellant weight, kg |
20,45 |
|
Optimal angle of elevation, ° |
48 |
|
Maximum range, km |
20,1 |
|
Maximum speed, m/s |
690,6 |
|
Fuze |
MRV-U |
Packing Details:
|
1 rocket in a wooden case |
|
|
Gross weight, kg |
98 |
